JHEMCU SH50A F4 OSD 2-3S Flight Controller with 5V BEC Output Built-in 5A BLheli_S 4in1 Brushless ESC for Whoop

F4 OSD Flight Controller

CPU: STM32F411CEU6

Sensor: MPU-6000 3-axis accelerometer/3-axis gyroscope (SPI connection)

Input Voltage: 2-3S Lipo (DC 7.4-12.6V)

BEC: 5V 2.5A

Black Box: 8MB

Built-in OSD interface

Led_Strip interface

BUZZER buzzer interface

Support PPM, SBUS, IBUS, Spektrum DSM2/DSMX, 1024/2048 Receiver

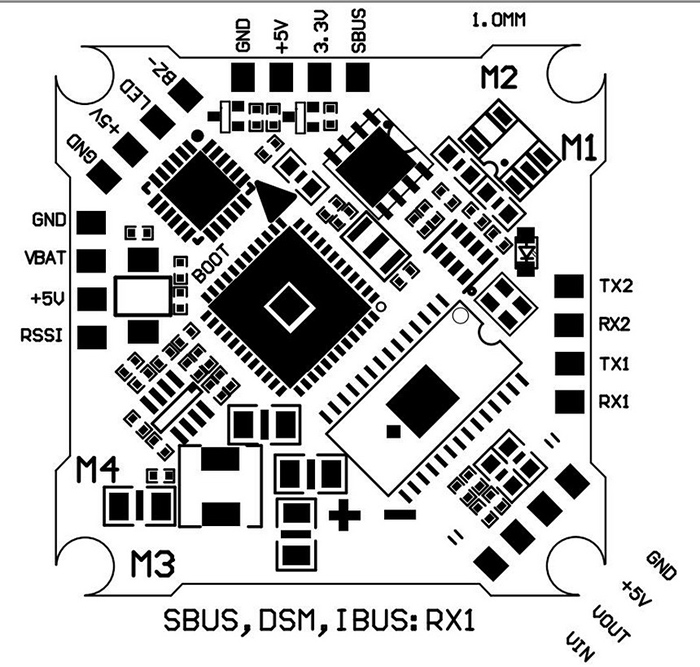

UART2: TX2 (for image transmission), RX2

UART1: TX1, RX1 (for receiver)

Three sets of BEC output pads

Support BLheli suite ESC programming

Built-in voltage detection

Board Size: 28.5x28.5mm

Screw hole spacing: 24.5x24.5mm, M3

Board Weight: 3.3g



5A BLheli_S 4in1 Brushless ESC

Con. Current: 5A

Burst Current: 7A ( for 2 Seconds)

Support BLHeliSuite programmable

Factory firmware: S_H_50_REV16_7.HEX

Signal Support: D-shot150, D-shot300, D-shot600, Oneshot125, Multishot, PWM



Package Included:

1x JHEMCU SH50A Board

2x Power Cable

1x XT30 Plug

4x Connector
