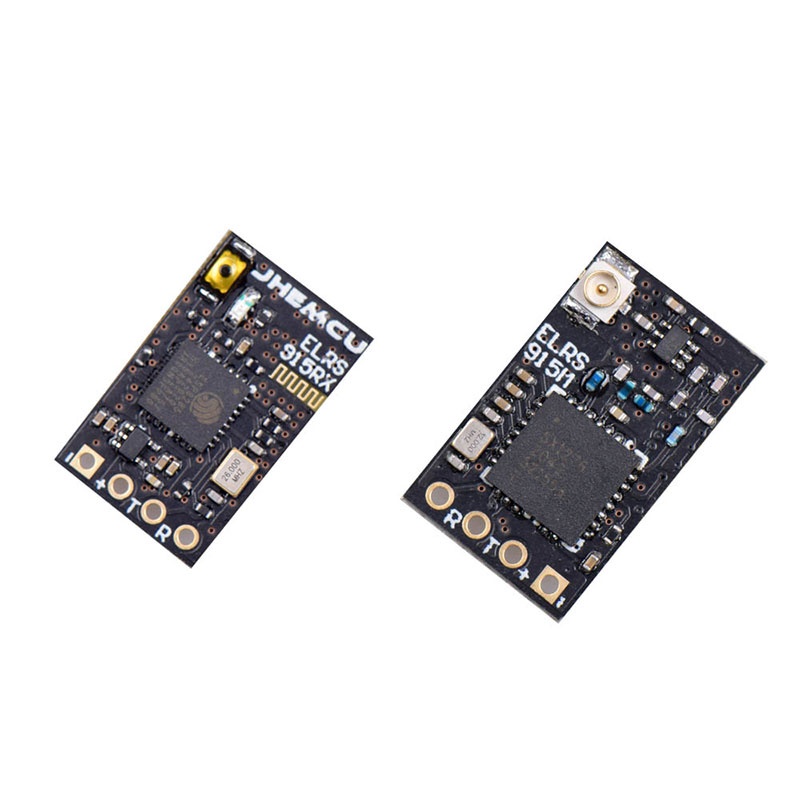

SX1276 RF



Frequency range: 915MHz FCC



Maximum receiving Refresh rate: 500HZ



Minimum receiving Refresh rate: 25HZ



Working voltage: 5V

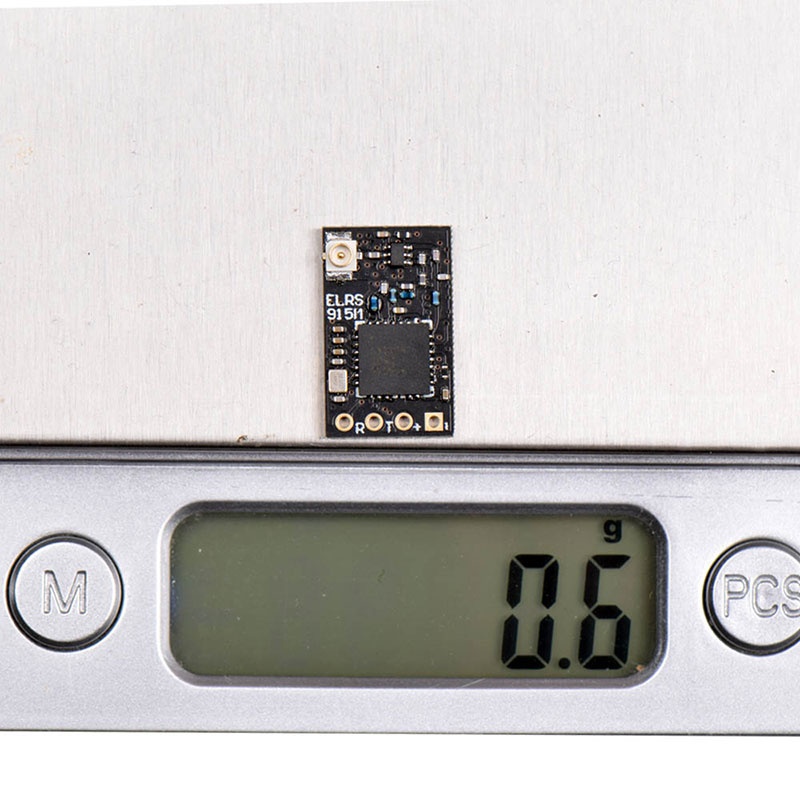

Weight: 0.6g (excluding antenna)



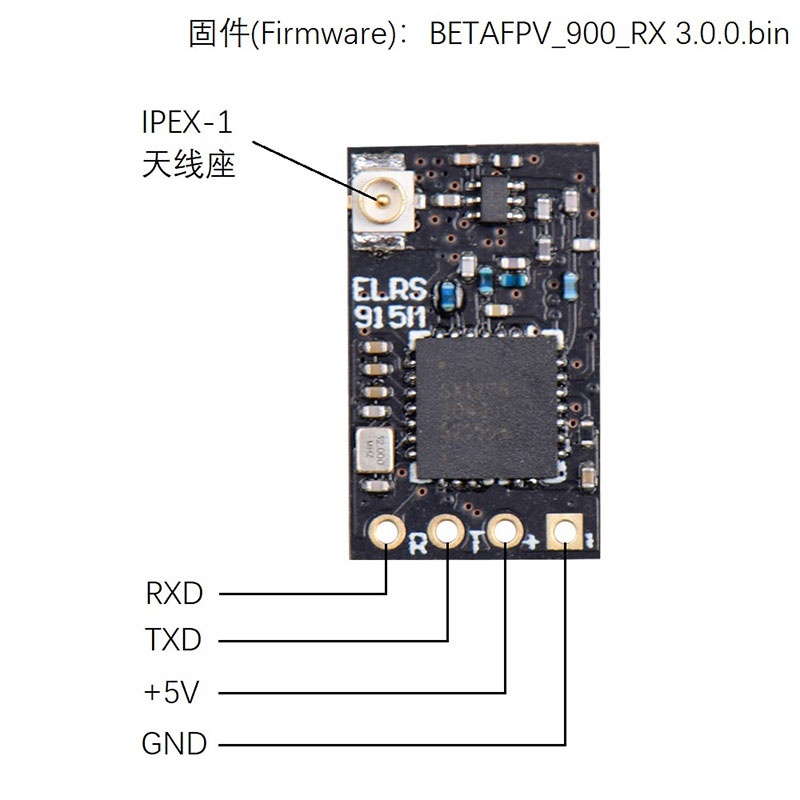

Firmware: BETAFPV_ 900_ RX 3.0.0.HEX



Size: 11mm * 18mm * 3mm







Indicator light status:



Double flashing: Code matching mode



Slow flashing: no transmission signal received



Always on: Received transmission signal



Flash: WIFI upgrade mode



Frequency matching steps:



After the receiver is connected to the flight control, connect a USB to power the flight control. After inserting the USB for the first time, disconnect the USB immediately when the LED light on the receiver goes out. Repeat the operation twice, and when the USB is inserted for the third time, the LED will start to double flash, and the receiver will enter code checking mode.



2. After correctly connecting the 915M (868M) ELRS tuner module to the remote control, copy the ELRS.LUA file to the SD card in the remote control, directory SD Card/Scripts/tools, and then run ELRS.LUA for Bind operation.



After successful binding, the LED on the receiver will become permanently lit and telemetry signals can also be received.





Shipping packaging:

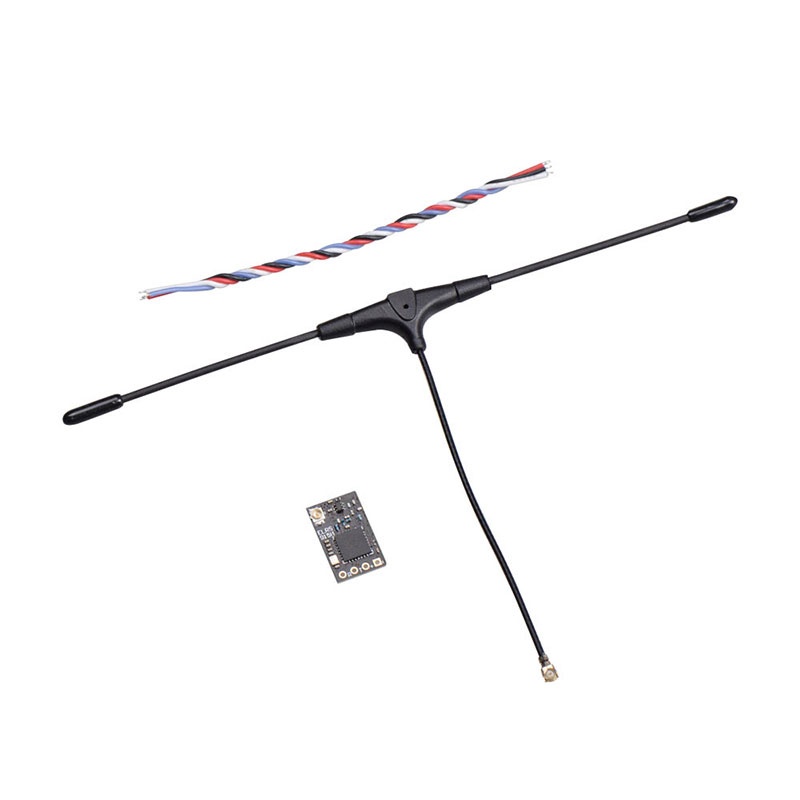

Receiver * 1



Wire * 4



T-shaped antenna * 1
