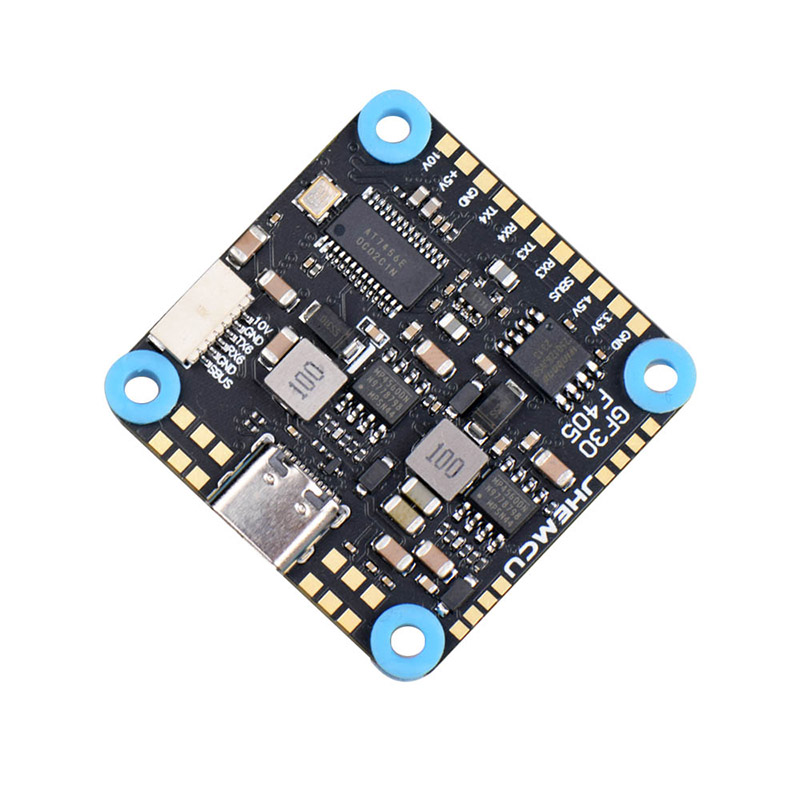

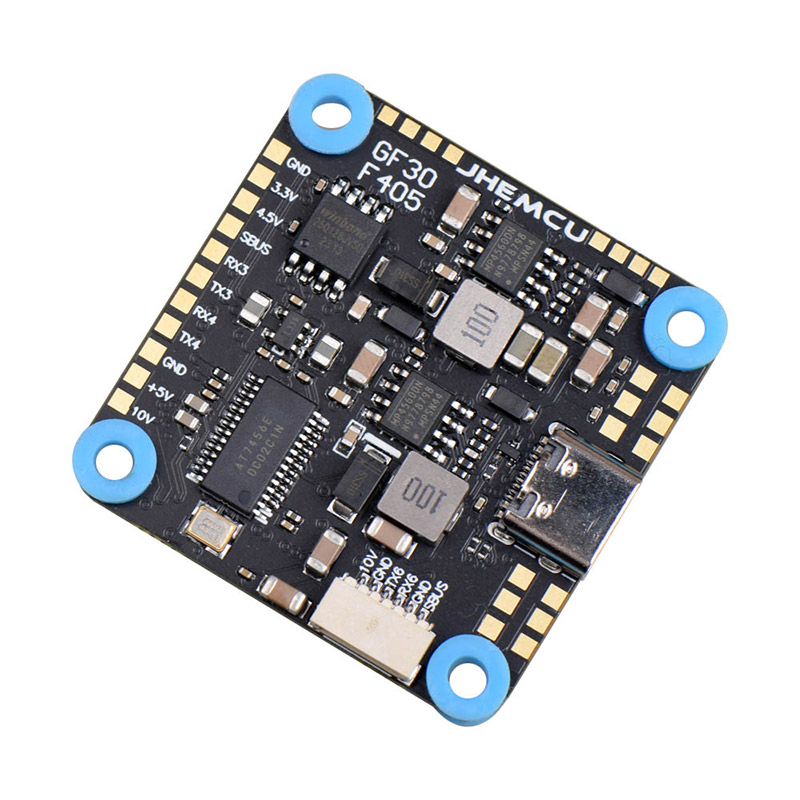

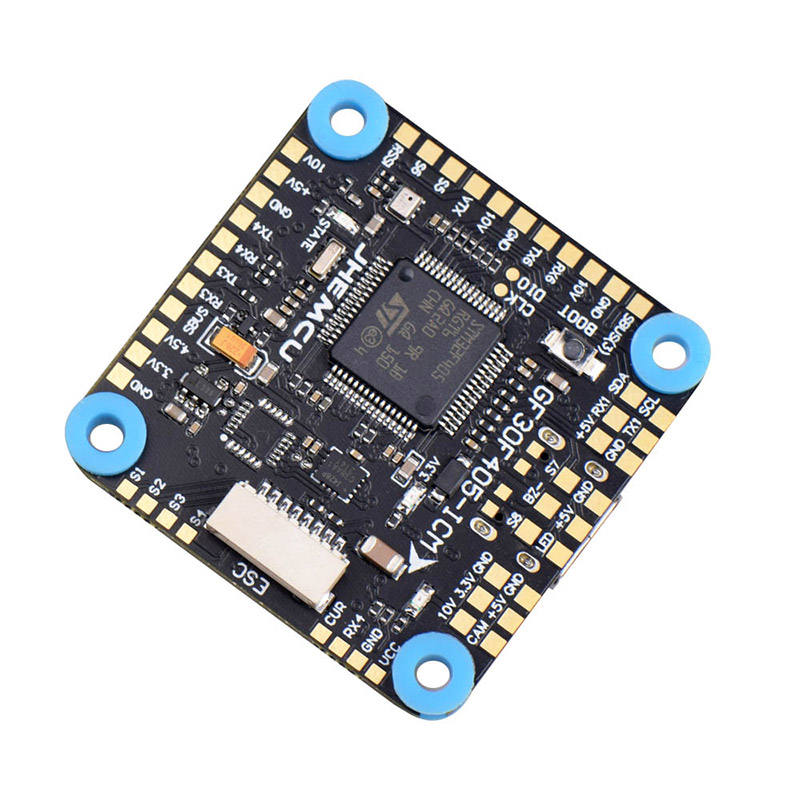

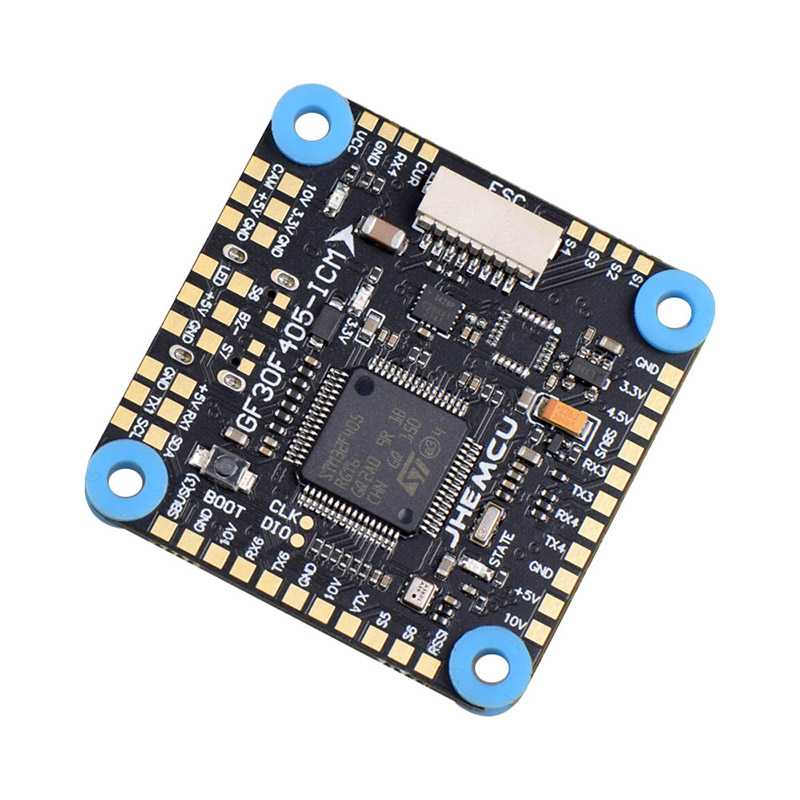

GF30F405-ICM
- Product No.：202371622482

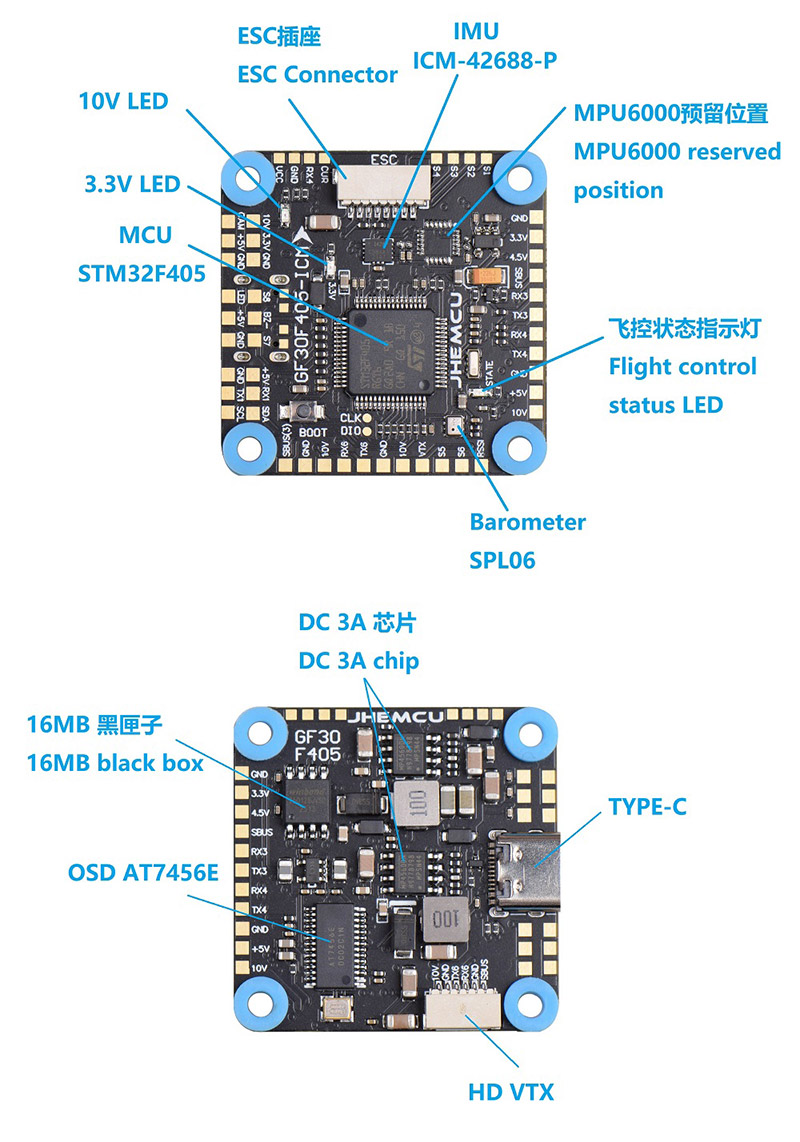

MCU: STM32F405RGT6
Power supply: 3-8S (11V-36V)
Signal protocol: PWM, Oneshot125, Oneshot42, Multispot, Dshot150, Dshot300, Dshot600
Sensor: ICM-42688-P
Size: 36 * 36mm (30.5mm mounting hole, diameter 4MM)
Firmware version: Betaflight JHEF405pro/INAV_ 6.1.0_ JHEMCUF405
Black box: 16MB
Barometer: SPL06
• OSD: Support
DJI VTX: With reserved interfaces, supports
USB: TYPE-C interface
• IIC: Support
• UART: 4-way, UART1, 3, 4, 6, where UART3 is the receiver
• BEC: BEC 5V/3A and 10V/2A
Receiver: SBUS, IBUS, DSM2/X, TBS, CRSF, etc
Support for WS2812 programmable LED
Support for buzzers
• Built in voltage sensor, Charged current detection port

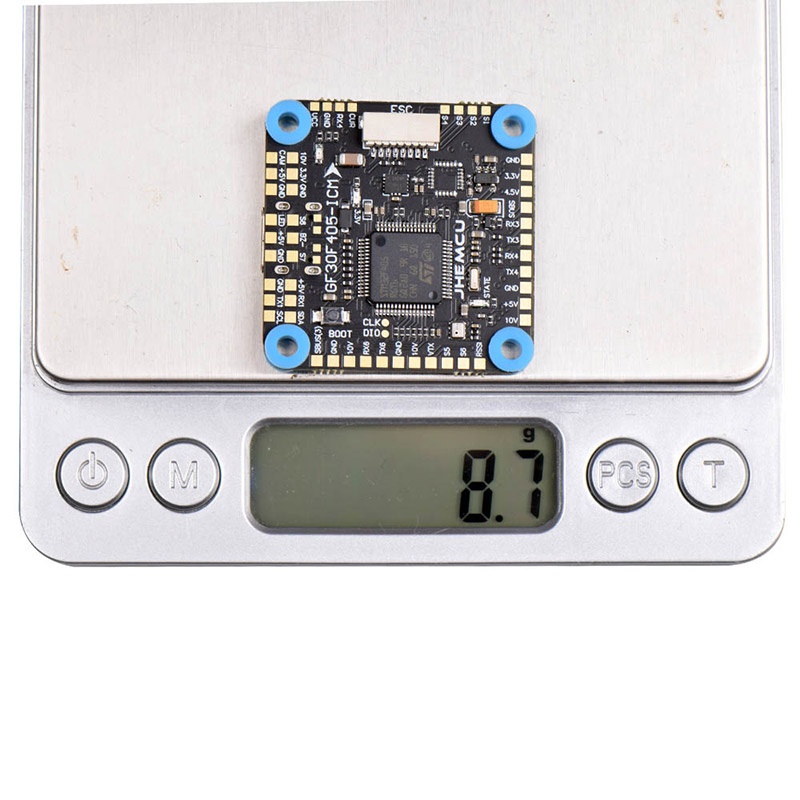

Weight: 8.7 grams

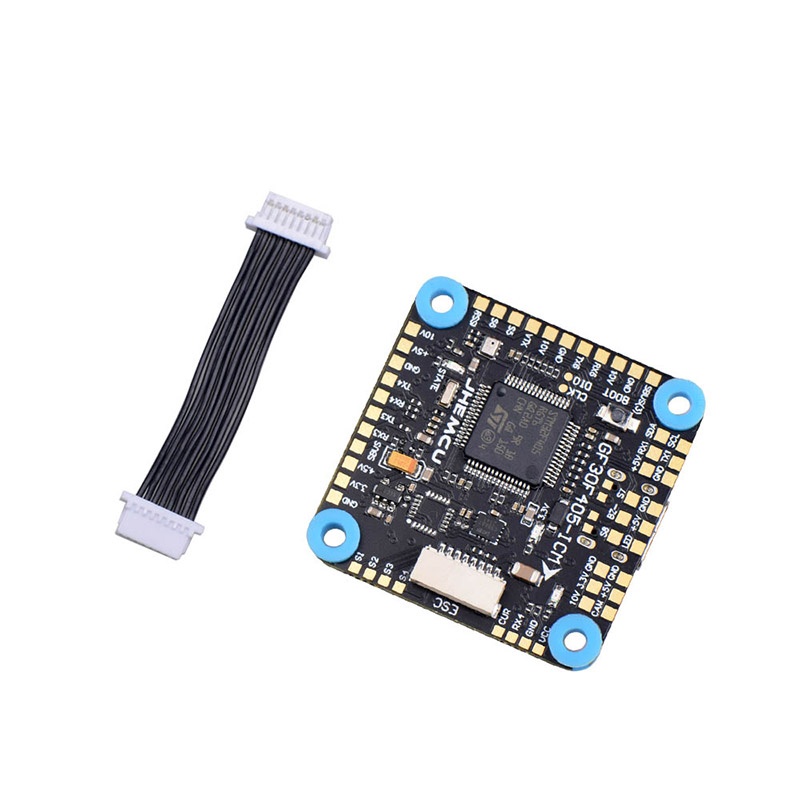

Packaging list:
GF30F405-ICM * 1
8P plug cable * 1
M3 shock absorber ball * 4
