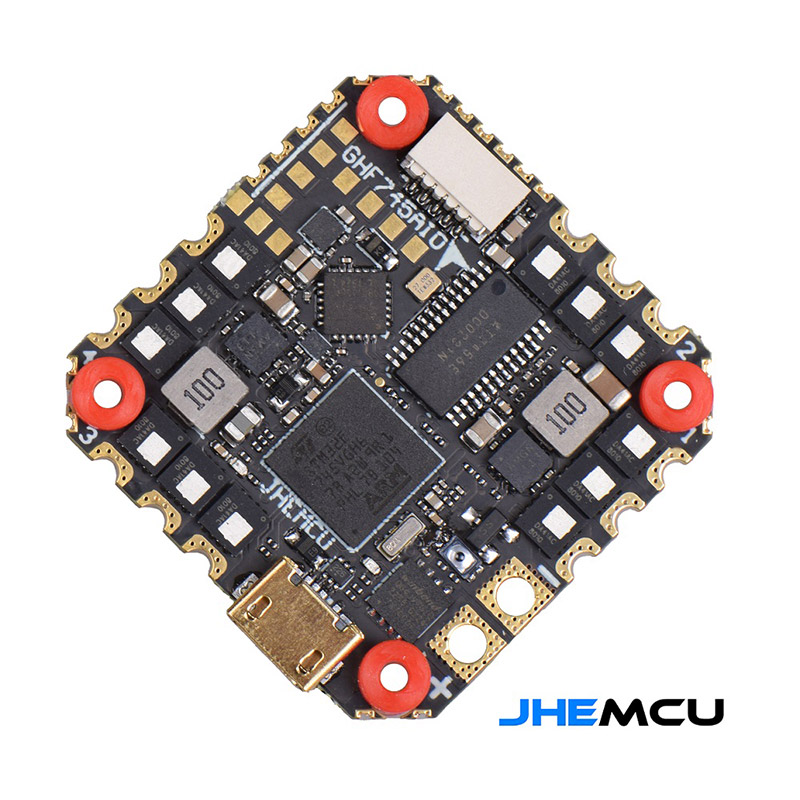

GHF745AIO-50A

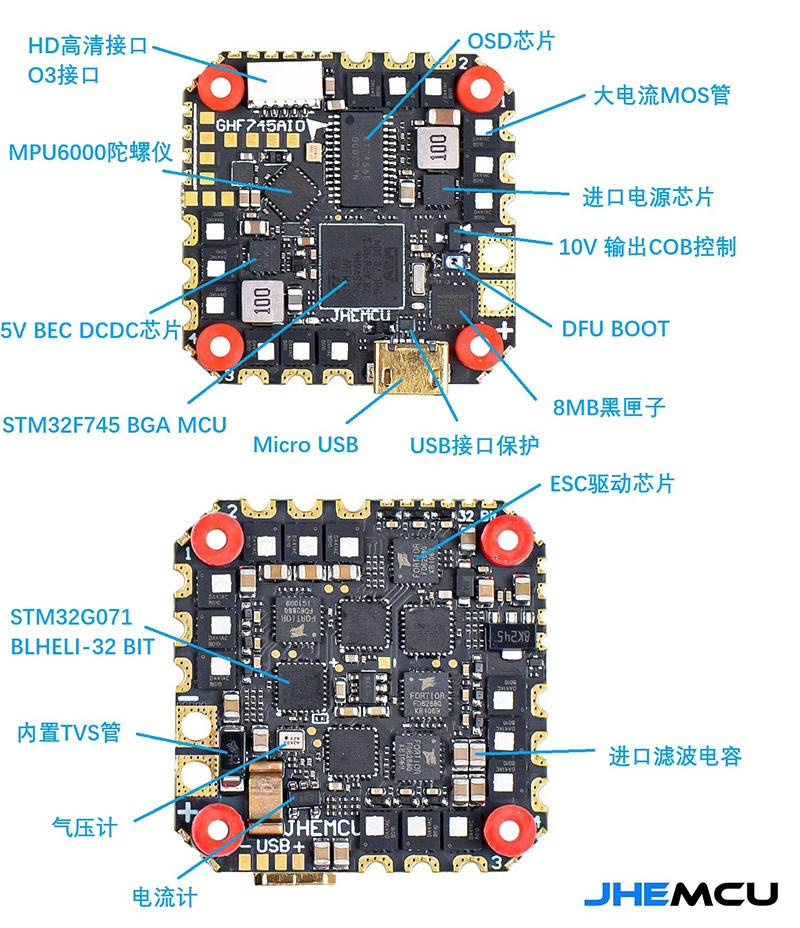

 GHF745AIO adopts STM32F745+MPU6000 gyroscope to achieve stable flight performance, with built-in 5V/2.5A, 10V/2A BEC, built-in OSD module, barometer, and black box.

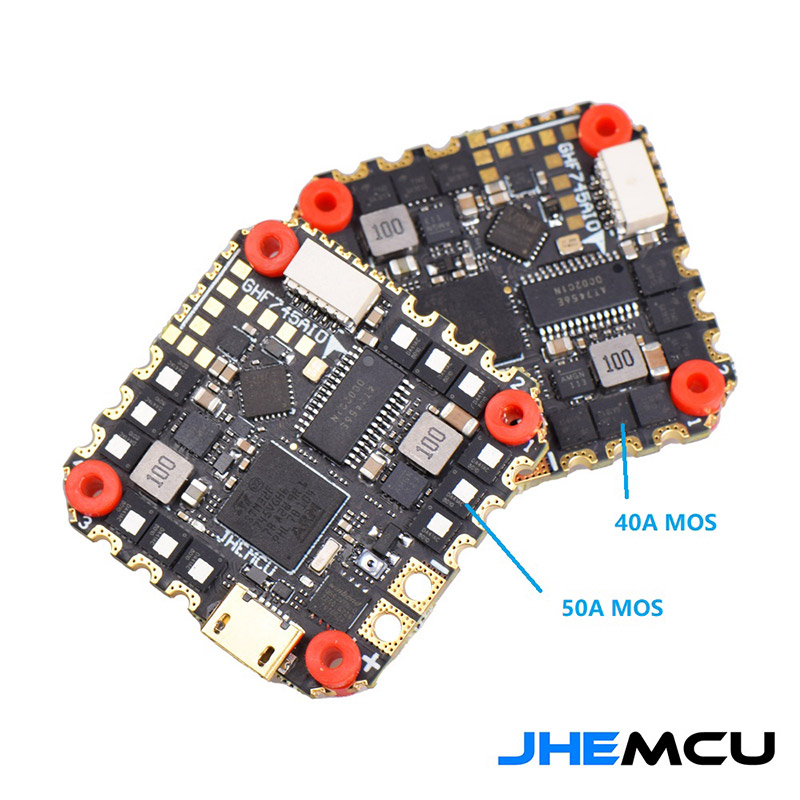

The brushless electrical adjustment part adopts ST G071's 32-bit matched with imported high-power MOS, with a built-in TVS module, eliminating the need to weld TVS modules on the outer part.

Brand name:     JHEMCU
Model:            GHF745AIO
MCU:            STM32F745/216MHZ
IMU:            MPU6000/Gyro/Accel
OSD:            AT7456E
Baro:            YES
Blackbox:         8MB
Input voltage:    3S-6S(11.5V-26V)
5V-BEC:            5V/2.5A ±0.1V
10V-BEC:           10V/2A ±0.1V
Receiver:          ELRS(CRSF), TBS(CRSF) ,SBUS,IBUS,DSM2,DSMX
HD接口:           YES
USART:           UART1,UART2,UART3,UART4,UART5,UART6
IIC:           IIC1
Led_Strip:           YES
Buzzer:           5V
ESC signal:        Dshot150,Dshot300,Dshot600
USB:          Micro USB
Current port:  YES
Voltage sensor:YES
DFU button:   YES
FC Firmware:     betaflight_4.4.2 JHEF745.HEX
Size:          33*33MM
Mounting Hole:25.5*25.5*3MM
Weight:          7.3g

ESC Current:      40A/50A
ESC MCU:        STM32G071
ESC TYPE:           Blheli_32
ESC Firmware:   JHEMCU_G071_ESC_Multi_32_9.HEX

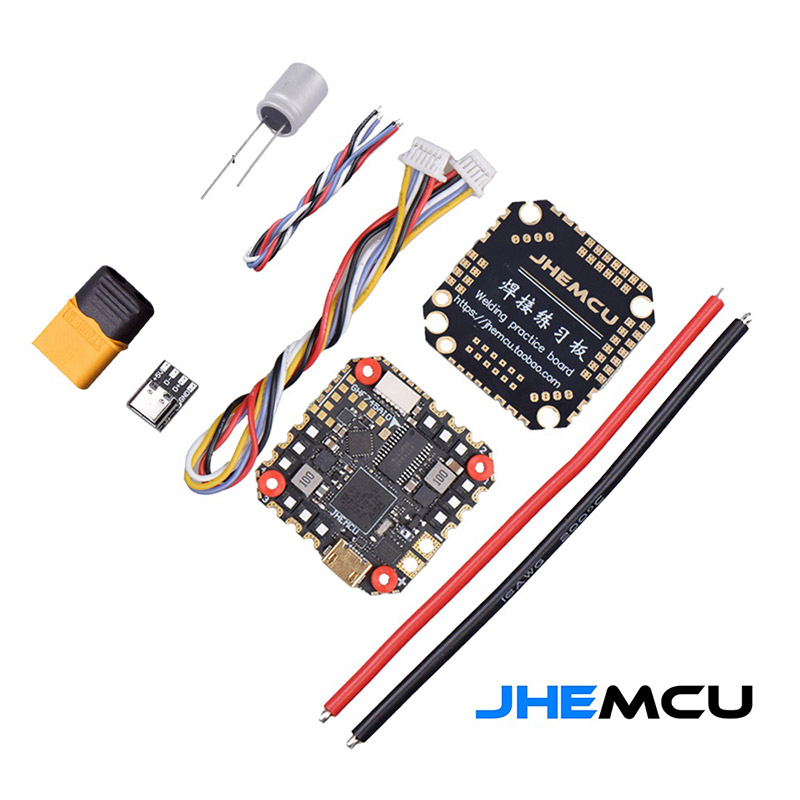

Packaging List:

GHF745AIO-50A                     * 1
XT60                                        * 1
M2 * 6.5MM shock absorber * 4
50A-14AWG wire                  * 2
O3 connecting line 5P to 6P  * 1
470UF/35V capacitor             * 1
TYPE-C adapter board           * 1
28AWG Wire                          * 4
Welding practice board         * 1
