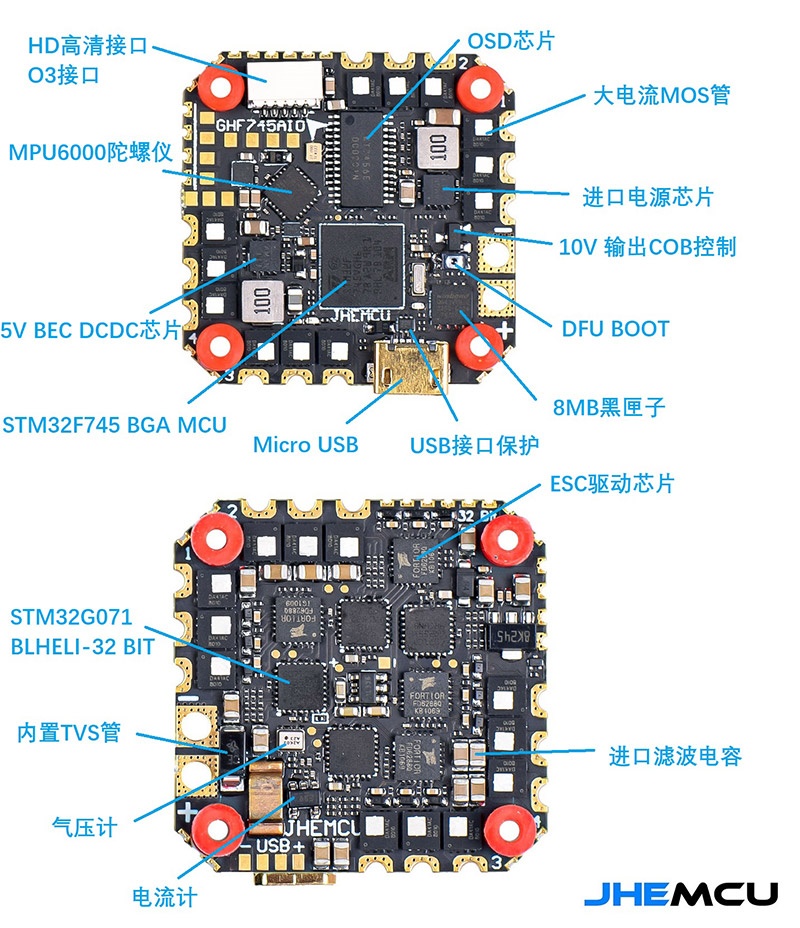

GHF745AIO adopts STM32F745+MPU6000 gyroscope to achieve stable flight performance, with built-in 5V/2.5A, 10V/2A BEC, built-in OSD module, barometer, and black box.



The brushless electrical adjustment part adopts ST G071's 32-bit matched with imported high-power MOS, with a built-in TVS module, eliminating the need to weld TVS modules on the outer part.



Brand name：     JHEMCU

Model:            GHF745AIO

MCU：            STM32F745/216MHZ

IMU:            MPU6000/Gyro/Accel

OSD：            AT7456E

Baro：            YES

Blackbox：         8MB

Input voltage:    3S-6S（11.5V-26V）

5V-BEC：            5V/2.5A ±0.1V

10V-BEC:           10V/2A ±0.1V

Receiver：          ELRS(CRSF), TBS(CRSF) ,SBUS,IBUS,DSM2,DSMX

HD接口：           YES

USART:           UART1,UART2,UART3,UART4,UART5,UART6

IIC：           IIC1

Led_Strip:           YES

Buzzer:           5V

ESC signal:        Dshot150，Dshot300，Dshot600

USB:          Micro USB

Current port：  YES

Voltage sensor：YES

DFU button：   YES

FC Firmware:     betaflight_4.4.2 JHEF745.HEX

Size:          33*33MM

Mounting Hole:25.5*25.5*3MM

Weight:          7.3g

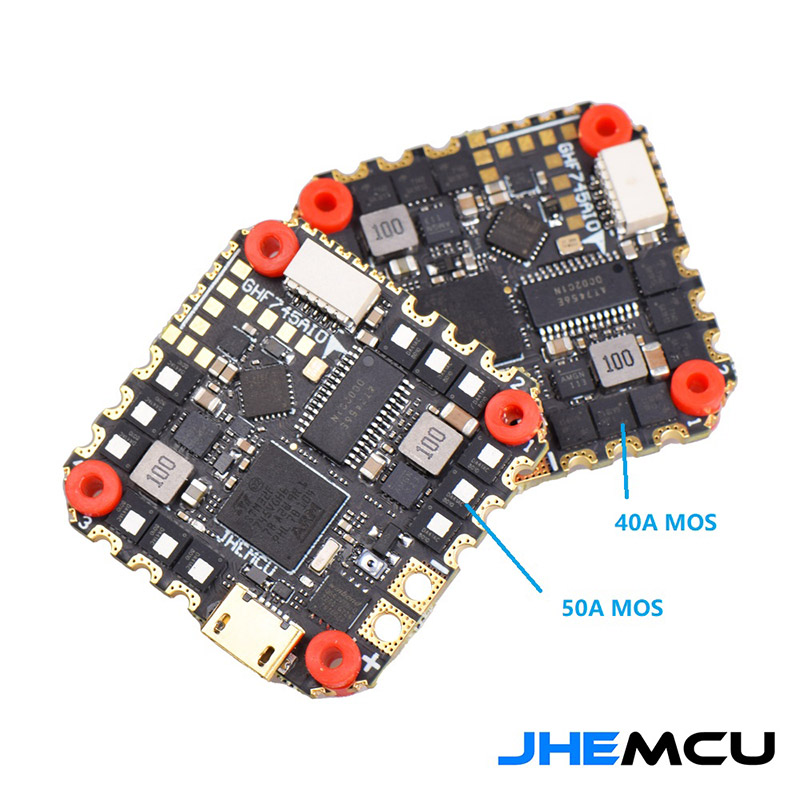

ESC Current:      40A/50A

ESC MCU：        STM32G071

ESC TYPE:           Blheli_32

ESC Firmware:   JHEMCU_G071_ESC_Multi_32_9.HEX



Packaging List：



GHF745AIO -40A                    * 1

XT60                                        * 1

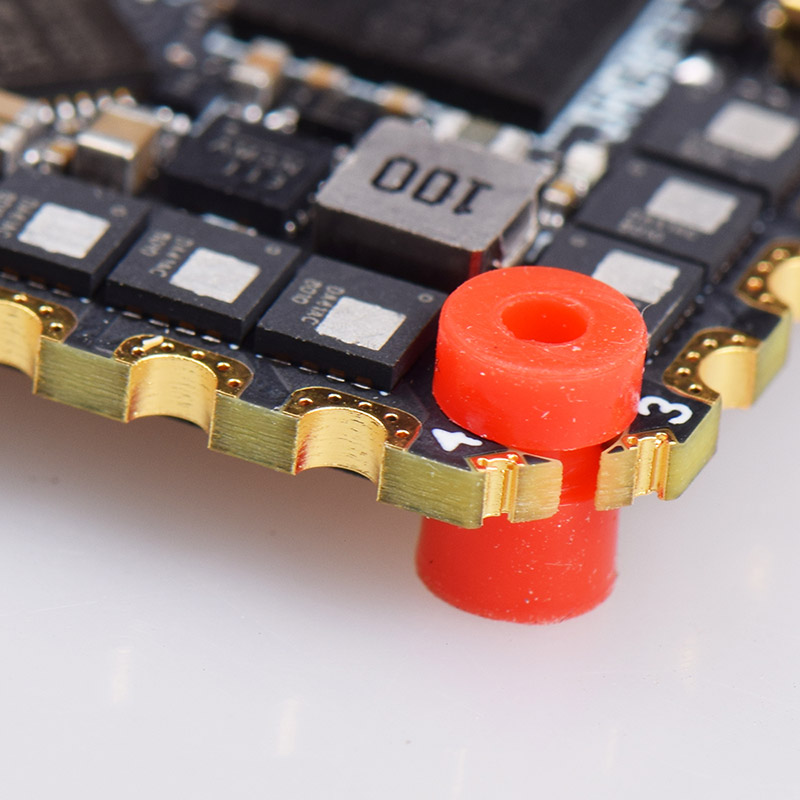

M2 * 6.5MM shock absorber * 4

40A-16AWG wire                  * 2

O3 connecting line 5P to 6P  * 1

470UF/35V capacitor             * 1

TYPE-C adapter board           * 1

28AWG Wire                          * 4

Welding practice board         * 1
